Magic Pump
Magic pump
Features of magic pump
- ●Cutting and conveying simultaneously.
- ●Easier and quicker stirring.
- ●Evenly and quickly mixing various materials.
- ●The cutting blade made of wear resistant nickel-chrome molybdenum alloy.
- ●The body made of acid and alkaline resistant SCS14 material.
- ●Moderately granulating the needed sizes within certain range.
- ●Easy maintenance and excellent durability.
- ●Low operational cost.
Magic pump for various industries
- Chemical industry
- Synthetic rubber, ABS, PS, dyes, pesticide, medicine, epoxy resin, cement paints.
- Food industry
- Granulated fruit, Fruit, Juice, Chocolate, Malt_Sugar, Starch Wine, Fish and Meat.
- Environment Protection Industry
- Wastewater, Excrement.
- Other
- Paper, Feed, Pulp, Plaster, Sodium Hydroxide.

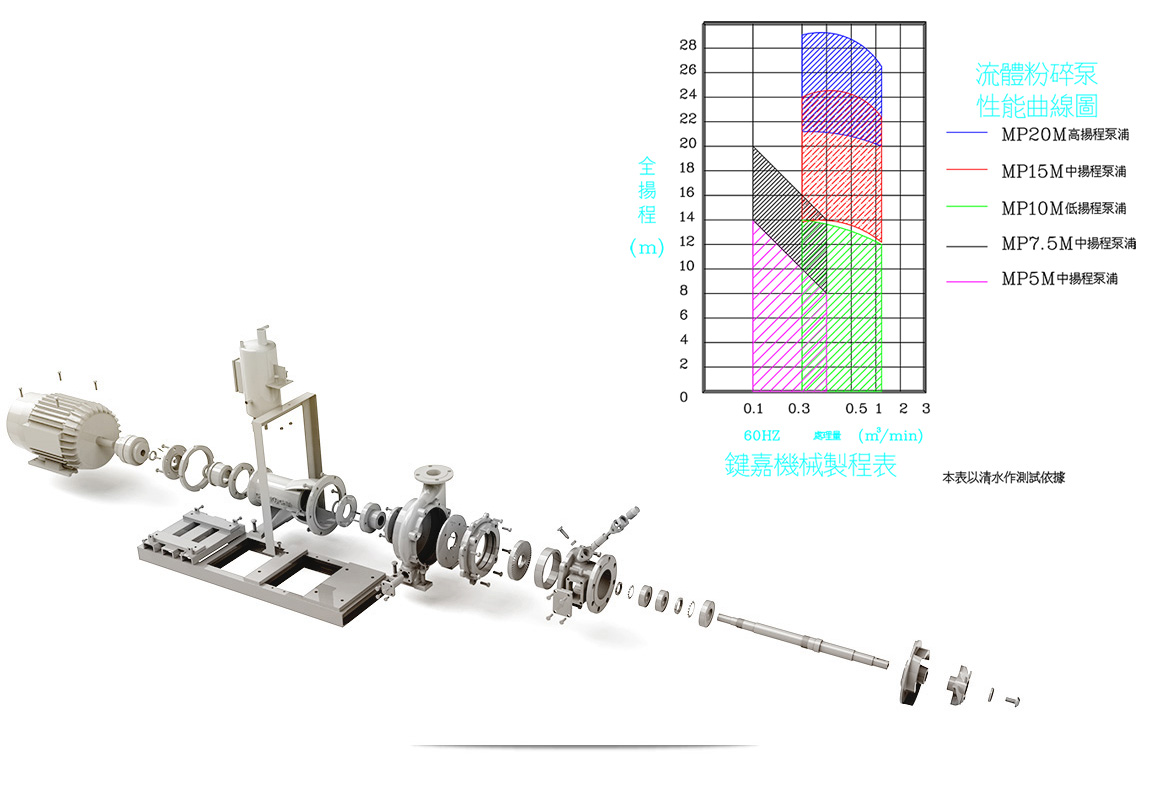

Profile of the hydro-pulverizing pump
流體粉碎泵浦尺寸圖
專利號碼:新型第一二八七三七號| 機種 |
|
A | B | C | E | F | H | I | J | K | L | M | N | O | P | Q | R | S | T | 馬達 | 軸封 |
|
基礎螺絲 | 重量(kg) | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP05M | 80 | 45 | 745 | 547 | 198 | 358 | 1133 | 75 | 90 | 165 | 200 | 255 | 455 | 425 | 75 | 110 | 88 | 1000 | 270 | 300 | 5HP | 機械式 | 185 | 150 | 130 | 8x19 | 140 | 105 | 130 | 8x19 | 315LXM16X6 | 165 | ||||||||||||||||||||||||||||
| MP7.5M | 80 | 45 | 745 | 547 | 198 | 358 | 1133 | 75 | 90 | 165 | 200 | 255 | 455 | 425 | 75 | 110 | 88 | 1000 | 270 | 300 | 5HP | 機械式 | 185 | 150 | 130 | 8x19 | 140 | 105 | 130 | 8x19 | 315LXM16X6 | 165 | ||||||||||||||||||||||||||||
| MP10M | 125 | 65 | 835 | 580 | 255 | 484 | 1320 | 100 | 90 | 200 | 250 | 290 | 540 | 500 | 75 | 125 | 130 | 1150 | 320 | 350 | 10HP | 機械式 | 250 | 210 | 182 | 8x22 | 175 | 140 | 182 | 8x19 | 315LXM16X6 | 190 | ||||||||||||||||||||||||||||
| MP15M | 125 | 65 | 835 | 580 | 255 | 484 | 1320 | 100 | 90 | 200 | 250 | 290 | 540 | 500 | 75 | 125 | 130 | 1230 | 360 | 390 | 15HP | 機械式 | 250 | 210 | 182 | 8x22 | 175 | 140 | 182 | 8x19 | 315LXM16X6 | 325 | ||||||||||||||||||||||||||||
| MP20M | 125 | 65 | 835 | 580 | 255 | 484 | 1320 | 100 | 90 | 200 | 250 | 290 | 540 | 500 | 75 | 125 | 130 | 1260 | 360 | 390 | 20HP | 機械式 | 250 | 210 | 182 | 8x22 | 175 | 140 | 182 | 8x19 | 315LXM16X6 | 350 | ||||||||||||||||||||||||||||
